《當代潛艇之王》SSBN-726 俄亥俄(Ohio)級核動力彈道導彈潛艇

SSBN-726 Ohio-Class FBM Submarines
SSBN-726 俄亥俄級核動力彈道導彈潛艇

原文:

Strategic deterrence has been the sole mission of the fleet ballistic missile submarine (SSBN) since its inception in 1960. The SSBN provides the nation’s most survivable and enduring nuclear strike capability. The Ohio class submarine replaced aging fleet ballistic missile submarines built in the 1960s and is far more capable.

Naval Submarine Base Kings Bay hosted the commissioning of USS LOUISIANA (SSBN 743) 06 September 1997 at the TRIDENT Refit Facility Drydock. The commissioning of LOUISIANA completed the Navy’s fleet of 18 fleet ballistic missile submarines. The ten Trident submarines in the Atlantic fleet were initially equipped with the D-5 Trident II missile. The eight submarines in the Pacific were initially equipped with the C-4 Trident I missile. In 1996 the Navy started to backfit the eight submarines in the Pacific to carry the D-5 missile.

Features

SSBN-726 class FBM submarines can carry 24 ballistic missiles with MIRV warheads that can be accurately delivered to selected targets from almost anywhere in the world’s oceans. Earlier FBM ships carry 16 missiles. A cylindrical pressure hull structure of HY-80 steel is supported by circular frames and enclosed by hemispherical heads at both ends. The pressure hull provides an enclosure large enough for weapons, crew, and equipment with enough strength to enable the ship to operate deep enough to avoid easy detection.

A streamlined (fish-shaped) outer hull permits the ship to move quietly through the water at high speeds. This outer hull surrounds the forward and aft end of the pressure hull and is not built to withstand deep submergence pressure. It is normally considered as the main ballast tanks. The superstructure is any part of the ship that is above the pressure hull. This would include the sail or fairwater area, and the area above the missile tubes. The streamlined hull was designed specifically for efficient cruising underwater; the Skipjack was the first nuclear-powered ship to adopt this hull form.

The larger hulls accommodate more weapons of larger size and greater range, as well as sophisticated computerized electronic equipment for improved weapon guidance and sonar performance. Improved silencing techniques reduce the chances of detection.

The Ohio-class submarines are specifically designed for extended deterrent patrols. To increase the time in port for crew turnover and replenishment, three large logistics hatches are fitted to provide large diameter resupply and repair openings. These hatches allow sailors to rapidly transfer supply pallets, equipment replacement modules and machinery components, significantly reducing the time required for replenishment and maintenance. The class design and modern main concepts allow the submarines to operate for 15+ years between overhauls. Each SSBN is at sea at least 66 percent of the time, including major overhaul periods of twelve months every nine years. One SSBN combat employment cycle includes a 70-day patrol and 25-day period of transfer of the submarine to the other crew, between-deployment maintenance, and reloading of munitions.

Like all submarines in use by the U.S. Navy today, the Ohio class submarine is powered by a pressurized water reactor (PWR) driving steam turbines to a single propeller shaft. It can attain depths in excess of 800 feet at speeds in excess of 25 knots.

Background

The STRAT-X study in 1967 recognized that the submarine-launched ballistic missile system was one of the more survivable legs in the Triad strategic nuclear deterrent system. However, it also recognized three important facts concerning American strategic defense capabilities which had assumed central significance in deliberations of U.S. defense planners. First, the submarine-launched ballistic system was recognized as the most survivable element in the triad of strategic nuclear deterrents. Second, though the POSEIDON missile provided an important upgrade of the system, the SSBN force itself was aging and would require replacement. Third, the threat of improved Soviet ASW capability made an enlarged SSBN operating area highly desirable.

The Navy (SSPO) commenced studies of a new Undersea Long-range Missile System (ULMS), which culminated in the Deputy SECDEF approving a Decision Coordinating Paper (DCP) No. 67 on 14 September 1971 for the ULMS. The ULMS program was a long-term modernization plan which proposed development of a new, longer-range missile and a new, larger submarine, while preserving a nearer-term option to develop an extended range POSEIDON. In addition to the new ULMS (extended-range POSEIDON) missile, which was to achieve a range twice that of POSEIDON, the SECDEF decision described an even longer-range missile to be required for a new submarine, whose parameters it would, in part, determine. This second missile, subsequently termed ULMS II, was to be a larger, higher-performance missile than the extended-range POSEIDON and to have a range capability of approximately 6000 nm. The term TRIDENT (C4) replaced the extended-range missile (Advanced POSEIDON) nomenclature in May 1972, and the name TRIDENT II was used to designate the new longer range missile.

On 14 September 1971 the Deputy SECDEF had approved the Navy’s DCP No. 67, which authorized both a new, large, higher-speed submarine and the TRIDENT (C4) Missile System. It was also constrained to fit in the circular SSBN cylinder launch tube which just contained the C3 so that the new missile could be used in then-existing POLARIS submarines.

A Navy decision was made in November 1971 to accelerate the ULMS program with increased funding for the ULMS SSBN. The SECDEF Program Budget Decision (PBD) of 23 December 1971 authorized the accelerated schedule with a projected deployment of the ship in 1978.

續:

The President signed the FY74 Appropriations Authorization Act providing funds for the first TRIDENT submarine on 15 November 1973, and on 25 July 1974 the Navy awarded a fixed-price incentive contract to General Dynamics, Electric Boat Division, for construction of this first TRIDENT SSBN.

In 1974 the initial Ohio program was projecte to consist of 10 submarines deployed at Bangor Washington carrying the Trident-1 C-4 missile. By 1981 the program had been modified to include 15 boats, and at least 20 boats were planned by 1985. In 1989 the Navy anticipated a total fleet of at least 21 boats, while plans the following year envisioning a total of 24 boats, 21 of which would carry strategic missiles with the remaining three supporting other missions, such as special forces. However, in 1991 Congress directed the termination of the program with the 18th boat, citing anticipated force limits under the START-1 arms control agreement and the results of the Bush Administration’s Major Warship Review, which endorsed capping the program at 18 boats.

The first eight Ohio class submarines (Tridents) were originally equipped with 24 Trident I C-4 ballistic missiles. Beginning with the ninth Trident submarine, USS Tennessee (SSBN 734), all new ships are equipped with the Trident II D-5 missile system as they were built, and the earlier ships are being retrofitted to Trident II. Trident II can deliver significantly more payload than Trident I C-4 and more accurately. All 24 missiles can be launched in less than one minute.

Ohio-class/Trident ballistic missile submarines provide the sea-based “leg” of the triad of U.S. strategic offensive forces. By the turn of the century, the 18 Trident SSBNs (each carrying 24 missiles), will carry 50 percent of the total U.S. strategic warheads. Although the missiles have no pre-set targets when the submarine goes on patrol, the SSBNs are capable of rapidly targeting their missiles should the need arise, using secure and constant at-sea communications links.

The Clinton Administration’s Nuclear Posture Review was chartered in October 1993, and the President approved the recommendations of the NPR on September 18, 1994. As a result of the NPR, US strategic nuclear force structure will be adjusted to 14 Trident submarines – four fewer than previously planned – carrying 24 D-5 missiles, each with five warheads, per submarine. This will require backfitting four Trident SSBNs, currently carrying the Trident I (C- 4) missile, with the more modern and capable D-5 missile system. Under current plans, following START II’s entry into force, the other four SSBNs will either be converted into special-purpose submarines or be retired.

SSBN 726 Class Submarine shipboard equipment which requires significant maintenance during the planned operating cycle, industrial level maintenance, which is beyond the capability of Ship’s Force, and which cannot be accomplished during the refit period (without unacceptable impact on other refit requirements), is supported by TRIDENT Planned Equipment Repair (TRIPER) program. TRIPER equipment is removed from the ship for refurbishment ashore, replaced with pre-tested, Ready for Issue units and the affected system restored to full operational condition prior to completion of the refit period. Replacement is accomplished on a planned basis at intervals designed to preclude the failure of the equipment or significant degradation of its associated system.

Recent Developments

As of 1995 the Navy was studying an extension from 30 to 40 years for the SSBN-726 class submarines. While 30 years was long the standard number for submarine operating lifetime, the SSBNs would seem to have a rather more benign operating history than the SSNs. They typically operate at somewhat shallower depths, they do not experience nearly as many excursions from their normal operating depth, and they would not operate below their test depth with any degree of freqency. Consequently, it would be expected that they could have a longer operating life than attack submarines [just as fighters wear out so much faster than bombers or transports]. As of late 1998 Navy cost and planning factors assumed that the Ohio-class submarines would have an expected operating lifetime of at least 42 years: two 20-year operating cycles separated by a two-year refueling overhaul.

As part of its long-term plan to divide the Trident fleet equally between the Atlantic and Pacific fleets, beginning in 2002 the Navy will transfer three of the 10 Trident subs now based at King’s Bay to Bangor. Of the eight Trident submarines assigned to Bangor – USS Alaska, USS Nevada, USS Henry M. Jackson and USS Alabama – will convert from the older Trident I (C-4) missile to the more powerful Trident II (D-5) missile. The Nevada is scheduled to enter the Bremerton shipyard in early 2001 to begin its conversion, and the final pair are scheduled for the refitting in 2005 and 2006.

| Specifications(數據) |
| Builders: | General Dynamics Electric Boat Division. |
| Power Plant: | One S8G nuclear reactor core reloaded every nine years two geared steam turbines, one shaft, output of 60,000 hp |
| Length: | 560 feet (170.69 meters) |
| Beam: | 42 feet (10.06 meters) |
| Displacement: | Surfaced: 16,764 tons Submerged:18,750 tons |
| Speed: | Official: 20+ knots (23+ miles per hour, 36.8 +kph) Actual: 25 knots submerged speed |
| Operating Depth: | Official: “greater than 800 feet” Actual: greater than 1,000 feet |
| Armament: | 24 - tubes for Trident I and II, 4 - torpedo tubes with Mk48 Torpedoes |
| Sensors: | BQQ-6 Bow mounted sonar BQR-19 Navigation BQS-13 Active sonar TB-16 towed array |
| Crew: | 15 Officers, 140 Enlisted |
| Unit Operating Cost Annual Average | $50,00,000 [source: [FY1996 VAMOSC] |
| Date Deployed: | November 11, 1981 (USS Ohio) |

| Boat List(同級潛艦) |
| Ohio | GD-EB | Bangor | 1974 | 10 Apr 76 | 7 Apr 79 | 11 Nov 81 | 2023 |
| Michigan | GD-EB | Bangor | 1975 | 4 Apr 77 | 26 Apr 80 | 11 Sep 82 | 2024 |
| Florida | GD-EB | Bangor | 1975 | 9 Jun 77 | 14 Nov 81 | 18 Jun 83 | 2025 |
| Georgia | GD-EB | Bangor | 1976 | 7 Apr 79 | 6 Nov 82 | 11 Feb 84 | 2026 |
| Henry M. Jackson (ex-USS Rhode Island) | GD-EB | Bangor | 1977 | 19 Jan 81 | 15 Oct 83 | 6 Oct 84 | 2026 |
| Alabama | GD-EB | Bangor | 1978 | 27 Aug 81 | 19 May 84 | 25 May 85 | 2027 |
| Alaska | GD-EB | Bangor | 1978 | 9 Mar 83 | 12 Jan 85 | 25 Jan 86 | 2028 |
| Nevada | GD-EB | Bangor | 1980 | 8 Aug 83 | 14 Sep 85 | 16 Aug 86 | 2028 |
| Tennessee | GD-EB | Kings Bay | 1981 | 9 Jun 84 | 13 Dec 86 | 17 Dec 88 | 2030 |
| Pennsylvania | GD-EB | Kings Bay | 1983 | 10 Jan 84 | 23 Apr 88 | 9 Sep 89 | 2031 |

[ 本文最後由 jacklf2004 於 07-10-24 09:43 PM 編輯 ]

| West Virginia | GD-EB | Kings Bay | 1984 | 24 Oct 87 | 14 Oct 89 | 20 Oct 90 | 2032 |
| Kentucky | GD-EB | Kings Bay | 1985 | 18 Dec 87 | 11 Aug 90 | 13 Jul 91 | 2033 |
| Maryland | GD-EB | Kings Bay | 1986 | 18 Dec 89 | 15 Jun 91 | 13 Jun 92 | 2034 |
| Nebraska | GD-EB | Kings Bay | 1987 | 26 May 87 | 15 Aug 92 | 10 Jul 93 | 2035 |
| Rhode Island | GD-EB | Kings Bay | 1988 | 1 Dec 90 | 17 Jul 93 | 9 Jul 94 | 2036 |
| Maine | GD-EB | Kings Bay | 1989 | 4 Apr 89 | 16 Jul 94 | 29 Jul 95 | 2037 |
| Wyoming | GD-EB | Kings Bay | 1991 | 27 Jan 90 | 15 Jul 95 | 13 Jul 96 | 2038 |
| Louisiana | GD-EB | Kings Bay | 1992 | 19 Dec 90 | 27 Jul 96 | 06 Sep 97 | 2039 |
| #19 | GD-EB | Bangor | 1990 | Proposal Cancelled in 1991 |
| #20 | GD-EB | Bangor | 1991 | Proposal Cancelled in 1991 |
| #21 | GD-EB | ??? | 1992 | Proposal Cancelled in 1991 |
| #22 | GD-EB | ??? | 1993 | Proposal Cancelled in 1991 |
| #23 | GD-EB | ??? | 1994 | Proposal Cancelled in 1991 |
| #24 | GD-EB | ??? | 1995 | Proposal Cancelled in 1991 |

Ohio 潛艦內部設計圖 艦載裝置示意圖 電腦繪圖 與 電腦模擬圖:

Ohio 從建造至潛艦下水圖集:

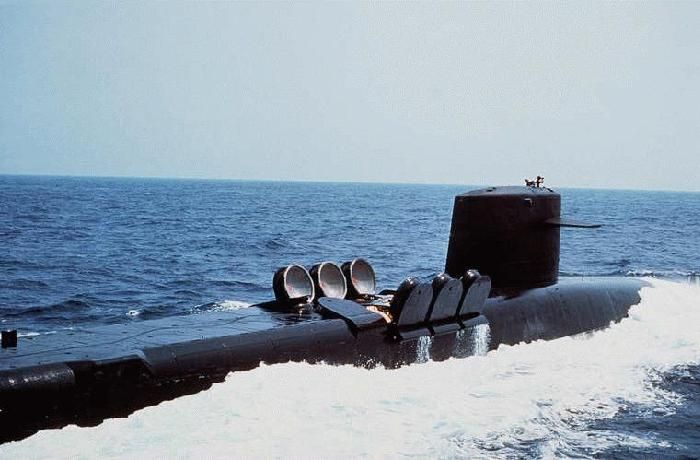

Ohio 圖集:

武器介紹:

俄亥俄級彈道導彈核潛艇 第四代核動力彈道導彈潛艇

美「俄亥俄」級彈道導彈核潛艇被譽為「當代潛艇之王」。就整體性能而言,它是當今世界上最先進的戰略核潛艇。

美國軍方在70年代初期展開了三叉戟Ⅰ型潛射彈道導彈的計劃,同時開始發展一種新型的彈道導彈潛艇以供三叉戟導彈使用。最初的計劃乃是建造一種拉法耶級的改良型潛艇,並使用相同的西屋(Westinghouse)S5核子反應爐,而後為了減低新潛艇和噪音,因此決定採用自然循環核子反應爐。基於經濟效益,導彈數量由18枚增至24枚。由於這項計劃的造價過於龐大,最初曾遭國會的反對,不過當前蘇聯在三角洲級潛艇上配置了射程長達6935公里的SS-N-8潛射彈道導彈之後,國會終於批准了這項計劃。

雖然已獲得國會的批准,不過這項計劃在發展之初仍遭到不少困難,因此仍較預定進度落後許多。當困難一一被克服以後,終於產生了一種極為優秀的潛艇與極具威力的導彈。第一艘俄亥俄號(SSBN 736)1981年開始測試工作,1982年1月發射第一枚導彈,並在82年10月作首次的戰鬥部署。前8艘俄亥俄級潛艇在帆罩後方配有24枚三叉戟Ⅰ型(D-5)導彈,田納西號則改為三叉戟Ⅱ型(D-5)導彈,這種導彈在90年3月在俄亥俄級上完成首次戰鬥巡航,將來前8艘亦將改配三叉戟Ⅱ型導彈。除彈道導彈外,各艦另備有4具傳統魚雷發射管可供自衛。

三叉戟導彈的射程較以往大幅度增加,這意味著它們只須部署在美國即對敵人目標具有相當的威協性。最初8艘俄亥俄級潛艇皆部署於緬因州的班哥外海,其餘則部署於喬治亞州的京斯灣。這意味著俄亥俄級主要任務區域僅須在美國擁有控制權的海域即可,因而佔了很大的優勢。

俄亥俄級潛艇的任務行程表是先以一組乘員執行為期70天的巡邏任務,之後有25天進行整修保養,整修完畢再由另一批乘員登艦執行任務。每九年進行一次為期一年的大整修,同時進行核能燃料棒的更換。如此每艘船的保險率可達百分之六十六---可以說是一項特例。

雖然前蘇聯的颱風級潛艇較俄亥俄級大了許多,不過其導彈攜帶量反較俄亥俄級少了4枚,就這點而言,俄亥俄級是較颱風級成功的。隨著冷戰時代的結束,繼前蘇聯在91年解體,俄亥俄級的建造工作在目前計劃的18艘完成後,似乎是不會再繼續了。

「俄亥俄」級核潛艇的艇體屬單殼型,在結構與佈置等方面均與眾不同。艇體艏艉部是非耐壓殼體,中部為耐壓殼體,整個耐壓體僅分成四個大艙,從艏至艉依次是指揮艙,導彈艙,反應堆艙和主輔機艙。指揮艙分為三層:上層設有指揮室,無線電室和航海儀器室;中層前部為生活艙,後部為導彈指揮室;下層佈置4具魚雷發射管。導彈艙共裝24枚「三叉戟」導彈,對稱於中心線平行佈置。反應堆艙的上部是通道,下部佈置反應堆。主輔機艙佈置動力裝置。

「俄亥俄」級核潛艇的電子設備主要包括水聲探測,導航和通訊三部分。艇上裝備10餘部水聲探測設備,最主要的是AN/BQQ-6型聲納,該聲納以主動工作方式為主,探測距離5-10海里,以被動方式工作時探測距離可達100海里。艇上的中心計算機可把整個導航系統連接在一起,實現了集中自動控制。通訊系統設施齊全,性能優良,可在300米深處接受岸台信號,從而避免被衛星和敵機發現。

「俄亥俄」級核潛艇的武器裝備除4具魚雷發射管外,主要是「三叉戟」導彈,它分為I型和II型兩種。I型導彈戰鬥部為Mk400型分導式彈頭,每枚有8個10萬噸級當量彈頭,最大射程為4600海里。II型導彈戰鬥部改用Mk500型分導式彈頭,每枚載有14個15萬噸級當量分彈頭,最大射程為6000海里。

「俄亥俄」級核潛艇是美國戰略核力量的重要組成部分,是其核威懾戰略的重要保證之一,一艘「俄亥俄」級核潛艇上攜帶的24枚導彈,336個分彈頭可以在半小時內摧毀對方200-300個大中型城市或重要的戰略目標。

排水量:18750噸

規格:全長560英尺(170.7米);全寬42英尺(12.1米),吃水36.4英尺(11.8米)。

裝備:SSBN 726至SSNB 733;三叉戟Ⅰ型(C-4)潛射彈道導彈24枚,SSBN 734以後:三叉戟Ⅱ型(D-5)潛射彈道導彈、533毫米魚雷發射管4具、顧耐德Mk 48魚雷。

主機:一具通用電氣S8G自然循環壓水冷卻式核子反應爐、渦輪導氣驅動系統(60000軸馬力),單軸,航速20節以上。
